1.GENERAL
DV1-N series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz,rated current up to 95A,for making breaking,frequently starting controlling the AC motor.AC Contactor Combined with the auxiliary contact block,timer delay machine-interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor,star-delta starter.With the thermal relay,it is combined into the electromagnetic starter.AC Contactor is produced according to IEC 60947-4-1.
2.SPECIFICATIONS

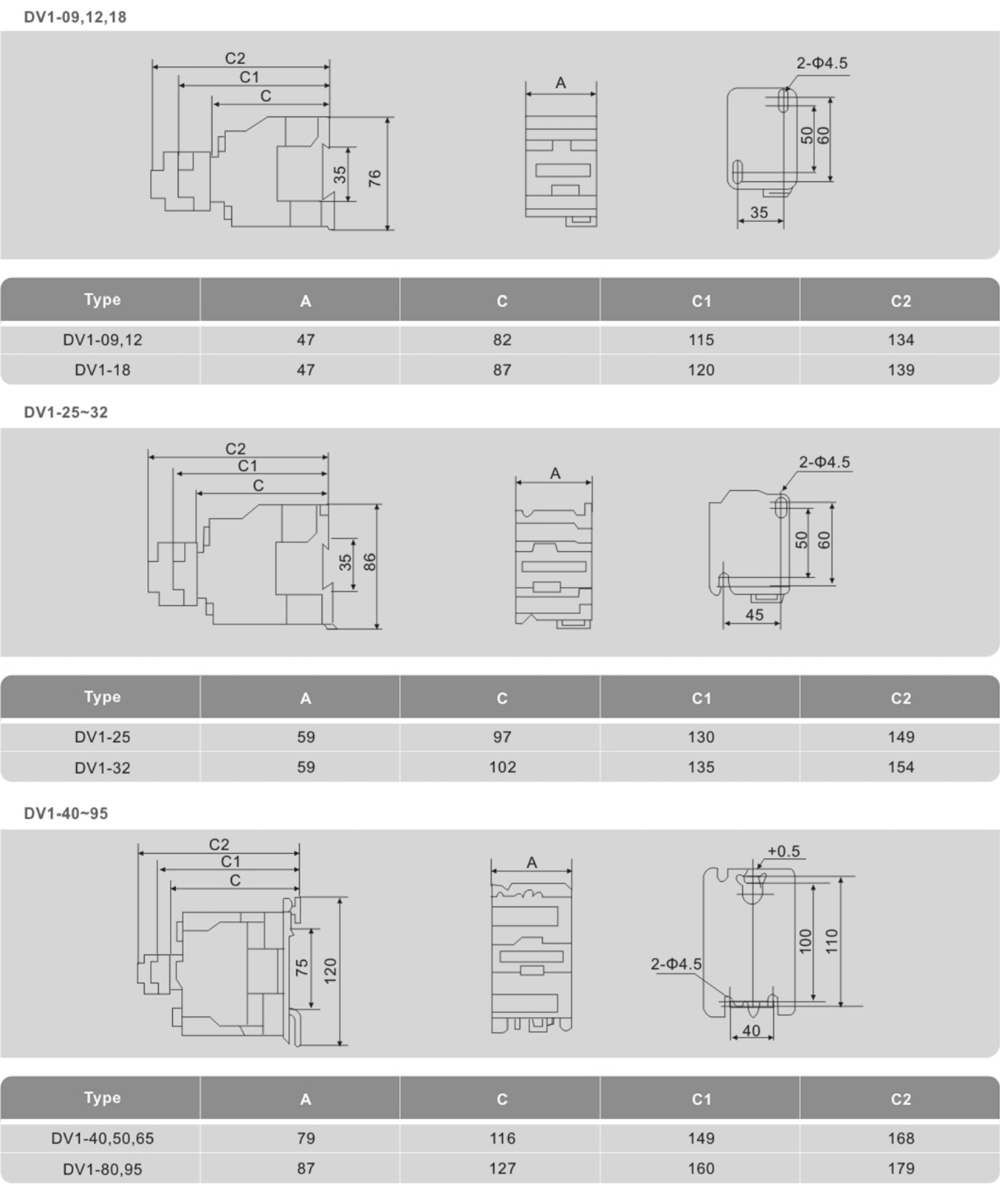

3.EXTERNAL DIMENSIONS AND CONTACT CONFIGURATIONS
