1.APPLICATION
DV1-N series AC contactor(simplified as contactor in the following)is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current 95A,for making and breaking and frequent starting,controlling the AC motor.Combined with the auxiliary contact group,air delayer,machine interlocking devce etc,it is combined into the delay contactor.mechanical interlocking device etc, it is combined into the delay contactor,mechanical interlocking contactor,star-triangle starter,with the thermal relay,it is combined into the electromagnetic starter.

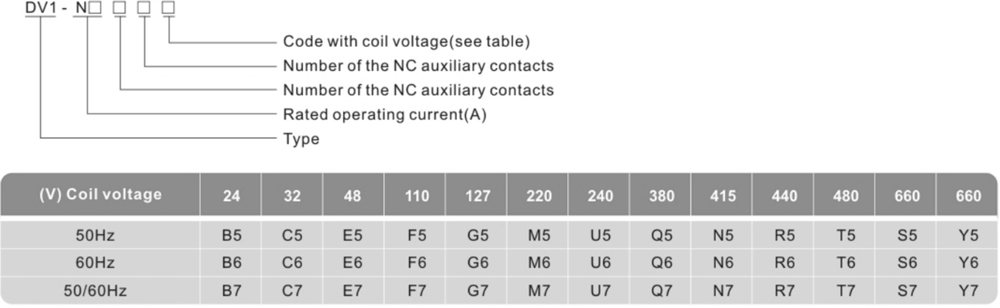

2.TYPE AND MEANING

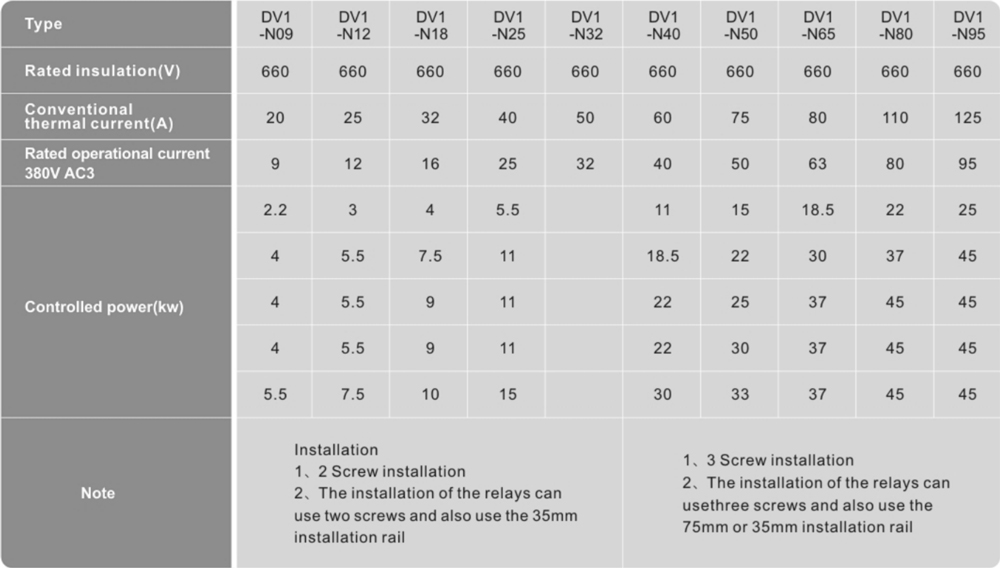

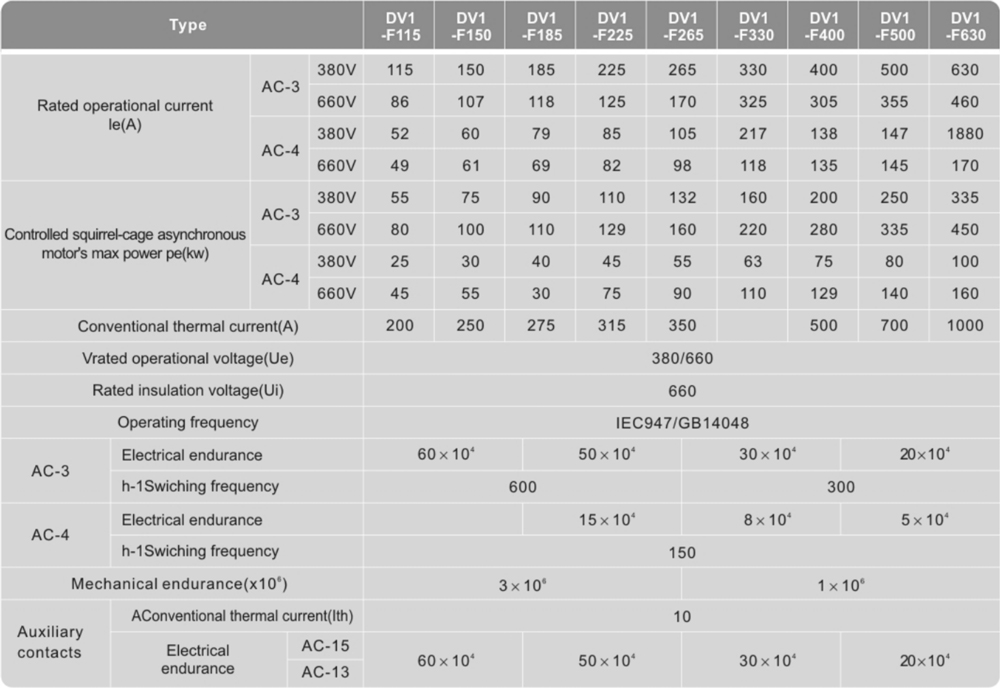

3.SPECIFICATIONS
Note 3P:Three gairs of main contacts,NO:one pair of No auxiliary contacts.
NC:one pair of NC auxiliary contacts.
