1.GENERAL
This series of thermal relay can be used In the circult of 50Hz or 60Hz,rated insulation voltage 660V.rated current 93A for protecting the phase break when the electric motor is overload.The relay has different mechanism and temperature compensation can be pluged in LC1-D/CJX2 serles AC contact.

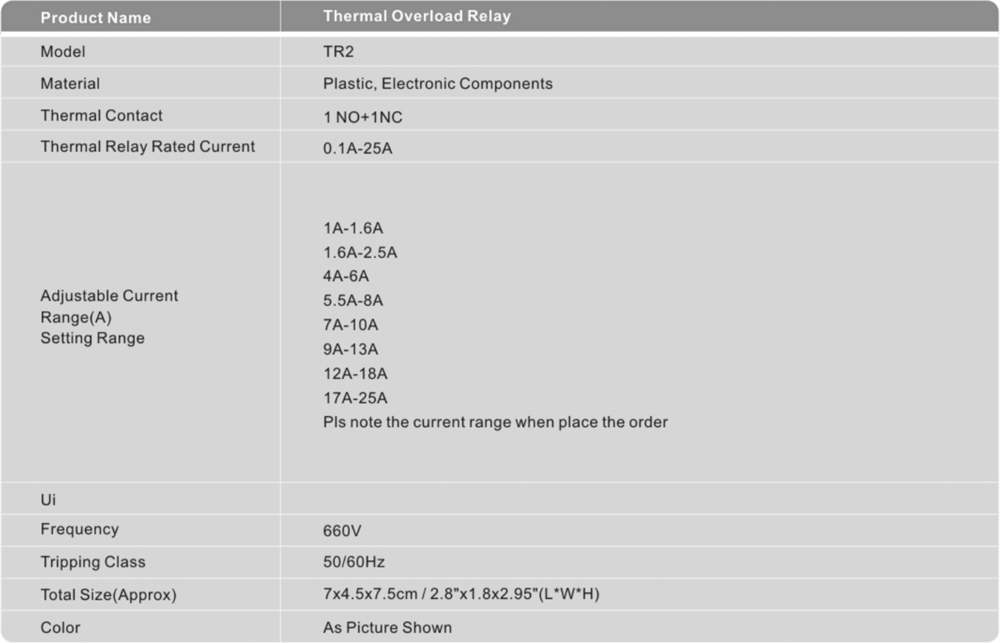

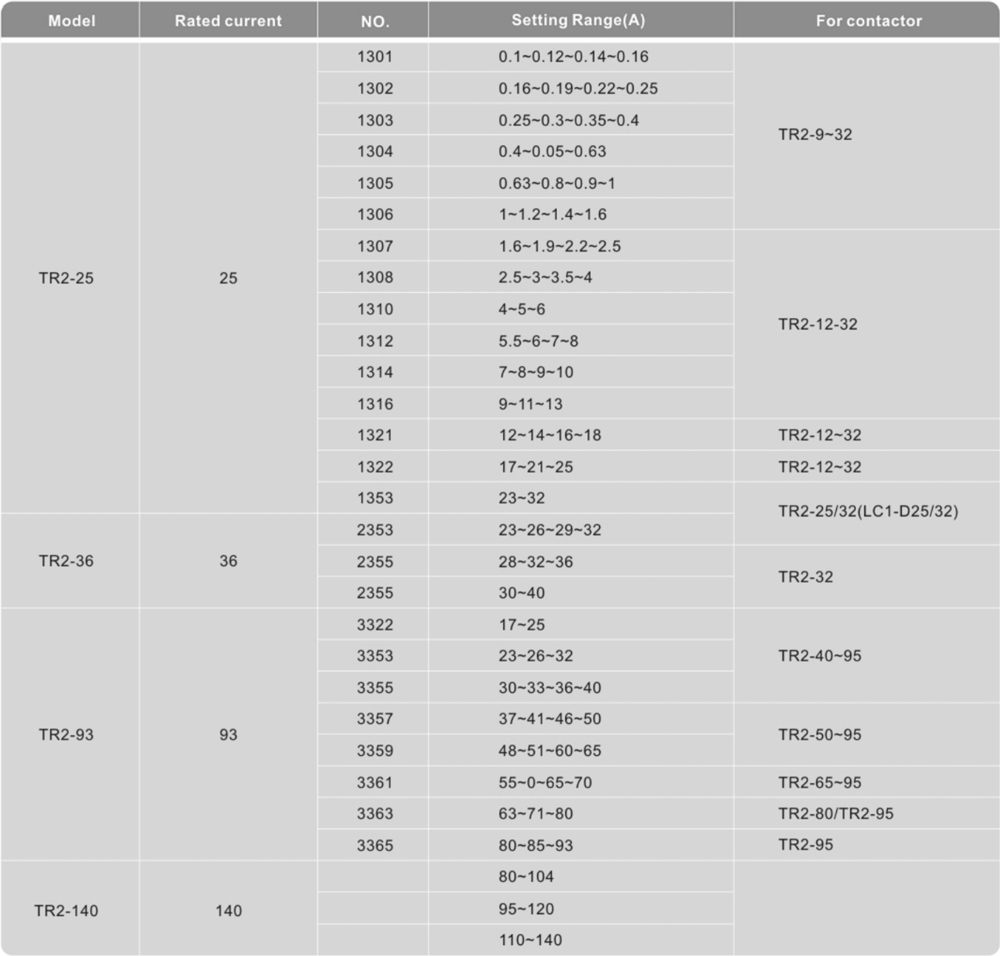

2.SPECIFICATIONS

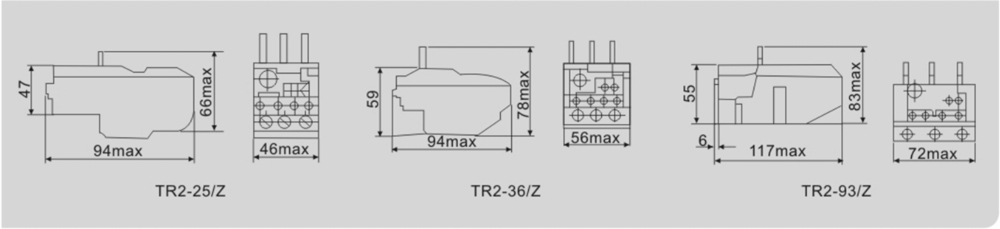

3.SHAPE AND INSTALLATION DIMENSIONS
