1.APPLICATION
DC2 series machine interlock contactors are suitable for using in AC 50/60Hz and rating insulation voltage 690-1000V,rating voltage 380V,rating current 9A-150A under AC-3,and control the positive and negative rotation of motor.Contactors conform with IEC60947-41,VDE0660GB14048.4 and etc.
2.FEATURES
◇Made up of by 2 same type AC contactors of DC2 interlocked by machine interlock
◇Machine interlock doesn't affect the action time of AC contactor.
◇Products loops,assistant loop lead connected (the products not connected with lead supply)
◇Close frame and reliable interlock

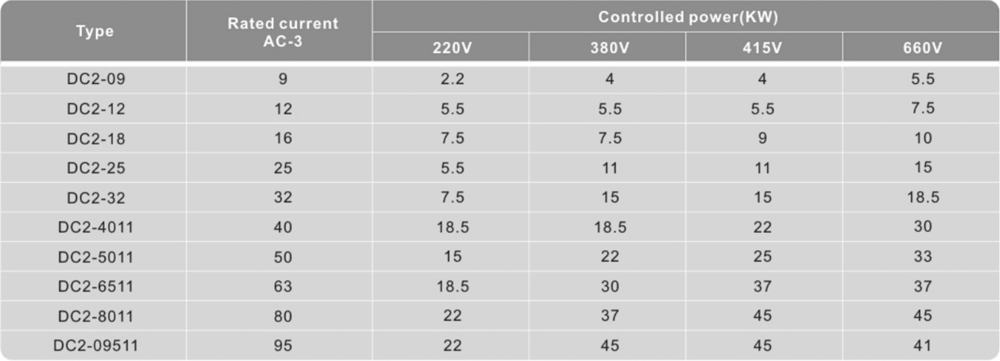

3.SPECIFICATIONS
